FAQ #23 - How to get started with SOA Suite 11g R1, Pt. 2

Introduction

In FAQ #22 - How to get started with SOA Suite 11g R1, Pt. 1 we covered the installation of SOA Suite 11g R1 on a development environment. We will continue in this part with setting up the SOA development environment in JDeveloper and developing a simple Database Adapter Service to return the Employee's information from the HR schema. Let's get down to it.

Main Theme

Creating the Database Adapter service

To develop SOA projects in JDeveloper an additional extension, called SOA Composite Editor, must be installed. The extension can be downloaded either via the JDeveloper Help | Check for Updates... menu option or directly from the Oracle Fusion Middleware Products Update Center web site.



Once downloaded and installed it makes available additional functionality to support developing SOA projects. To begin with your first SOA application, start JDeveloper and from the File | New... menu create a SOA Application using the New Gallery wizard.


On the Name your application page of the wizard enter the application name. Specify your project name on the Name your project page of the wizard. For the purpose of this example, we will call the project EmployeeInquirer. When asked to select a Composite Template on the Configure SOA settings page, select an Empty Composite.


Finally click Finish to complete the creation of the SOA application and its project. JDeveloper will proceed to create the project artifacts and display the composite Design screen as shown below.


As you can see, the composite is presented divided in 3 sections: Exposed Services, Components and External References. For this example, we will add a Database Adapter Service to the External References section. So grab a Database Adapter from the Service Adapters section of the SOA Component Palette and drop it to the External References section of the composite design canvas. This will start the Adapter Configuration wizard. Click Next on the Welcome screen. On the Service Name page specify the service name for the Database Adapter. For the purpose of this example let's call the service name getEmployeeInfo. This service will return some employee information based on some input.


On the Service Connection page we will specify a connection to the HR schema in our database. You can do the connection right from this page by clicking the green plus icon.


Notice that based on the connection name that we specified - HrConnection - a default JNDI name - eis/DB/HrConnection - was generated. Before deploying the application to the application server, we must create and configure this database resource. For now we will continue with the Adapter Configuration by clicking Next. On the Operation Type page we will select Perform an Operation on a Table and then check on Select.


Clicking Next will present the Select Table page.



On this page click on the Import Tables... button to import the EMPLOYEES table from the HR schema. On the Import Tables dialog click Query to query the database tables, select the EMPLOYEES table and shuttle it to the Selected section of the dialog.


Now click OK to bring the selected EMPLOYEES table to the Select Table page of the Adapter Configuration wizard.


Click Next and once more Next on the Relationships page. On the Attribute Filtering page select only the firstName and lastName attributes and click Next.


On the Define Selection Criteria page, we will add a parameter to the query. This parameter will be set to the Employee's identifier at runtime. So click on the Add... button in the Parameters section and enter inEmployeeId as the parameter name on the Parameter Name dialog.


While on the Define Selection Criteria page, click on the Edit.. button. This will bring up the Expression Builder dialog. Click the Add... button on the Expression Builder dialog and specify the expression employeeId EQUAL inEmployeeId by selecting employeeId for the First Argument, EQUAL for the Operator and the Parameter inEmployeeId for the Second Argument.


The SQL on the Define Selection Criteria page of the wizard should look like this now:


Click Next to go to the Advanced Options page. Leave the recommended options as they are and click Next once more. On the last page click Finish to complete the definition of the getEmployeeInfo Database Adapter Service.


JDeveloper proceeds with the creation of the getEmployeeInfo Database Adapter Service and displays it on the External References section of the composite design canvas.


This concludes the creation of the Database Adapter Service.


Conclusion

In this part we setup the environment in JDeveloper for developing SOA applications. We created a simple Database Adapter Service called getEmployeeInfo for inquiring an Employee based on the Employee's identifier. We will continue this introduction to SOA development next time by creating a Web Service binding and hooking it up to the getEmployeeInfo Database Adapter service.

Until the next time keep on JDeveloping!







Monday, May 24, 2010

FAQ #22 - How to get started with SOA Suite 11g R1, Pt. 1

Introduction

In this series of posts, we will examine some basic steps of getting started with Oracle SOA Suite. This first part deals with the software installation and configuration on a simple development environment running on Windows. Installing SOA Suite 11g is a series of steps that include a database installation, installation of WLS, installation of the SOA Suite software itself, creation of the repository and finally configuration. We will install the latest available version today, SOA Suite 11gR1 Patch Set 2 (11.1.1.3.0). Since SOA Suite 11gR1 Patch Set 2 (11.1.1.3.0) is a point release, installing it also requires that first SOA Suite 11g R1 Patch Set 1 (11.1.1.2.0) be installed and then upgrading it.

Main Theme

To install SOA Suite 11g R1 Patch Set 2 (11.1.1.3.0) follow the steps below in order:

1. Installation of WLS 10.3.3


The first step of installing SOA Suite would be to install WebLogic 10.3.3. It can be downloaded from the Oracle Fusion Middleware 11gR1 Software Downloads page. Start the installation of WLS by executing wls1033_win32.exe. Click Next on the first page and on the Choose Middleware Home Directory select Create a new Middleware Home. Enter the new middleware home directory.


On the Register for Security Updates page you can choose not to receive security updates and safely ignore the warning message that is displayed.


On the Choose Install Type you can select Typical.


Verify or change the installation directories on the Choose Product Installation Directories page.


In the Choose Shortcut Location page select "All Users" Start Menu folder.


Verify your installation selections on the Installation Summary page and click Next to start the installation.



2. Installation of SOA Suite 11g R1 Patch Set 1 (11.1.1.2.0)

You can download SOA Suite 11g R1 Patch Set 1 from the Oracle Fusion Middleware 11gR1 Software Downloads page. Once downloaded, unzip the ofm_soa_generic_11.1.1.2.0_disk1_1of1.zip file into a temporary directory and start the installation by going to the Disk1 folder and typing Setup -jreLoc %JROCKIT_JRE%, where %JROCKIT_JRE% is the location of the JRockit JRE.

Click Next on the Welcome page. After the successful checks for the necessary prerequisites on the Prerequisite Checks page click Next. On the Specify Installation Location ensure that you select the middleware home where you previously installed WLS 10.3.3, specify the home directory - defaults to Oracle_SOA1, and click Next.


On the Installation Summary page verify the installation selections and press Install to start the installation.


When the installation completes, click Next and finally Finish on the Installation Complete page.

3. Installation of SOA Suite 11g R2 Patch Set 2 (11.1.1.3.0)


Download SOA Suite 11g R2 Patch Set 2 from the Oracle Fusion Middleware 11gR1 Software Downloads page. Once downloaded, unzip the ofm_soa_generic_11.1.1.3.0_disk1_1of1.zip file in a temporary directory and start the installation by going to the Disk1 directory and typing Setup -jreLoc %JROCKIT_JRE%, where %JROCKIT_JRE% is the location of the JRockit JRE.

Click Next on the Welcome page. On the Specify Installation Location page middleware home and middleware home directory where you previously installed the SOA Suite 11g R1 Patch Set 1.


On the Installation Summary screen click Install to start the installation.




When the installation is complete click Next on the Installation Progress page and finally Finish on the Installation Complete screen.


4. Installing the Repository


Download the RCU Repository Creation Utility 11.1.1.3.0 from the Required Additional Software section of the Oracle Fusion Middleware 11gR1 Software Downloads page. Once downloaded, unzip the ofm_rcu_win_11.1.1.3.0_disk1_1of1.zip file in a temporary directory. Start the installation of the repository by going to the rcuHome\BIN directory and running the rcu.bat batch file.

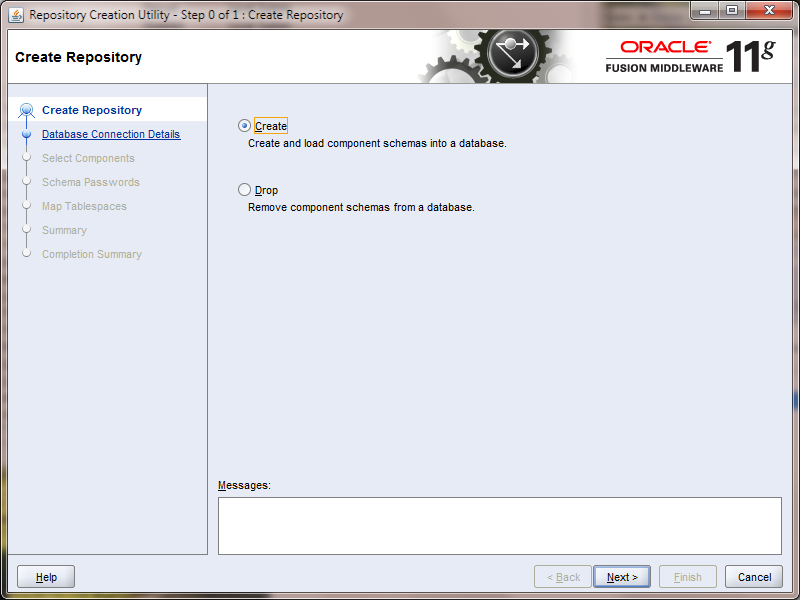

On the Create Repository page select Create.


Specify the database information in the Database Connection Details page and click Next.

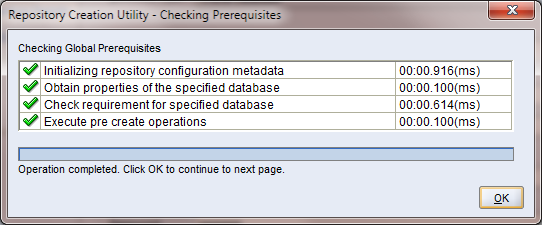

RCU will start a series of prerequisite checks and inform you of the status.


Click OK on the Checking Prerequisites dialog to proceed. On the Select Components page, select Create a new Prefix and enter a prefix or keep the default. Select the components to install from the Component tree and click Next.


RCU will proceed with checking the specific component prerequisites based on the components that you have selected. Verify that the prerequisites are all met and click OK in the Checking Prerequisites dialog.


On the Schema Passwords page, enter the passwords for the schemas and click Next.




Verify the tablespaces that will be created on the Map Tablespaces page and click Next.


After clicking OK on the warning regarding the creation of non-existing tablespaces, RCU will proceed with creating the necessary tablespaces. Once the tablespaces are created, click OK on the Creating Tablespaces dialog to proceed.


On the Summary page verify your selections and click Create to proceed with the creation of the repository.


RCU will now proceed creating the selected schemas. When done, a Competition Summary dialog is displayed.


5. Configuring SOA Suite 11g

Before using SOA Suite 11g, it must be configured. To start the configuration select Configure Application Server from the newly created Oracle SOA 11g - Home1 Start Menu.


This will start the Fusion Middleware Configuration Wizard. On the Welcome page select Create a new WebLogic domain and click Next.


On the Select Domain Source page select the products that will be supported by the domain and click Next.


Enter the domain name on the Specify Domain Name and Location screen and click Next.


On the Configure Administrator User Name and Password page enter the name and password of the domain administrator user and click Next. Select the domain startup mode and JDK on the Configure Server Start Mode and JDK screen and click Next.

On the Configure JDBC Component Schema page enter the SOA repository database connection settings.


If your connection details are correct, you should see a success check mark on the Test Component Schema screen.


On the Select Optional Configuration screen click on Administration Server and on Managed Servers, Clusters and Machines.


You can choose the default administration server name on the Configure the Administration Server page and click Next. On the Configure Managed Servers page, enter the names of managed servers.


Do not configure any clusters on the Configure Clusters page. On the Configure Machines page accept the defaults and click Next.


Accept the default configuration on the Assign Servers to Machines page and click Next.


On the Configuration Summary page verify your selections and click Create to start with the domain creation process. When all is done, you should see a Domain Created Successfully! screen.


This concludes the installation of SOA Suite 11g.

Conclusion

In this part we discussed how to install SOA Suite 11g R1 Patch Set 2 (11.1.1.3.0). In subsequent parts we will get into the details of how to use JDeveloper to develop SOA applications.

Until the next time, keep on JDeveloping!
